Product Overview

The S-15, S-25, and 35 series are 15, 25, and 35W single group output enclosed power supplies with a 30mm low profile design. They use 85-264VAC full range AC input. The whole series provides 5V, 12V, 15V, 24V, 36V, and 48V output. In addition to the high efficiency of 91.5%, the design of the metal mesh enclosure has enhanced the heat dissipation capacity, so that S-15, S-25 and 35 can work in the temperature range of - 30C to+70C without fans. The terminal system can easily meet the international energy requirements by providing ultra-low no-load power consumption (less than 0.3W). S-15, S-25 and 35 have complete protection function and anti 5G vibration capability; It complies with TUVEN60950-1, EN60335-1, EN61558-1/- 2-16, UL60950-1 and GB4943 international safety regulations. S-15, S-25 and 35 series provide a cost-effective solution for various industrial applications.

Principle Block Diagram

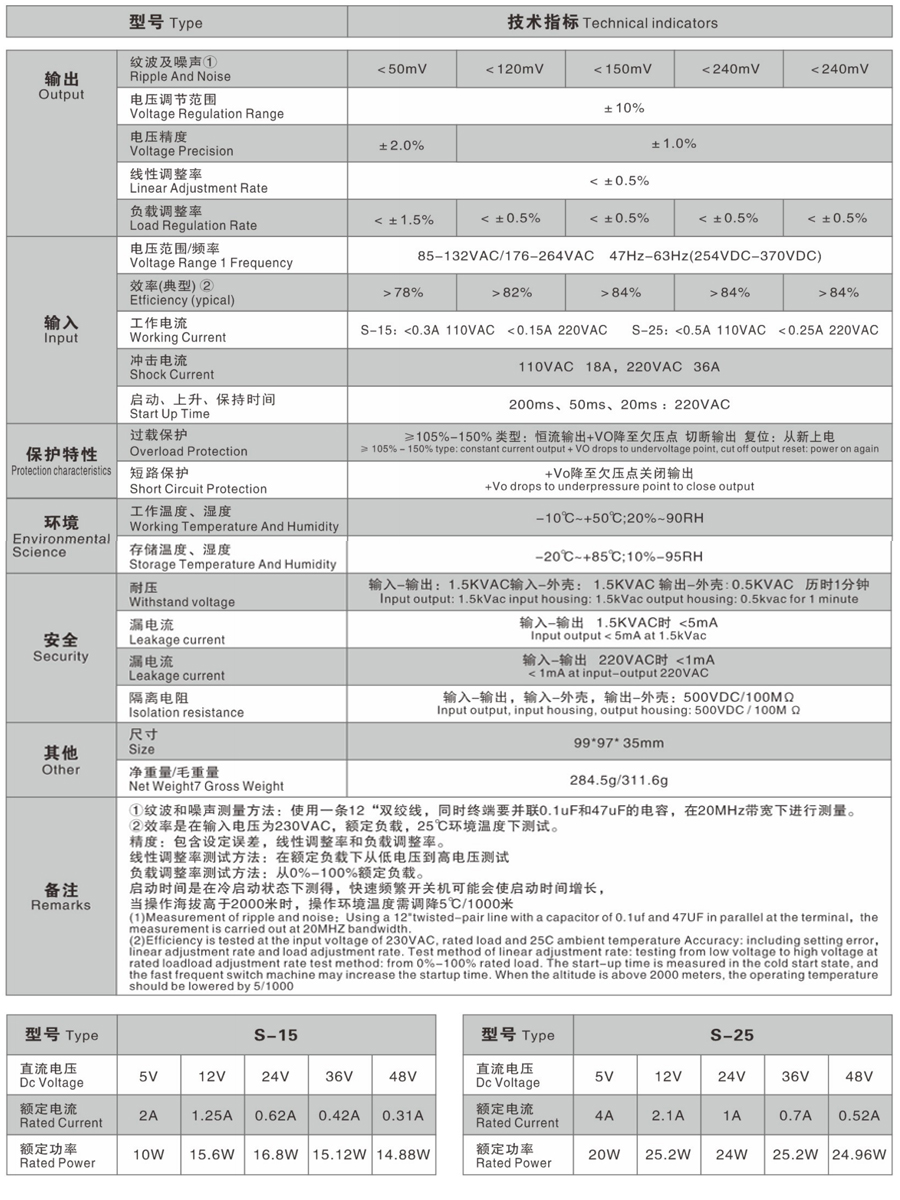

Product Technical Parameters
